Unlocking the Precision of Audi 5 Cylinder 10V Turbo Valve Shims Explained

The Audi 5-cylinder 10-valve turbocharged engine holds a legendary status among car enthusiasts and performance tuners. Whether it’s the famed Audi Quattro rally monster or the 200 Turbo, these engines symbolize precision engineering from a bygone era of mechanical excellence. At the heart of their performance lies a component often overlooked but essential to smooth operation—the valve shim.

This article explores the purpose, importance, maintenance, and sourcing of Audi 5 Cylinder 10V Turbo Valve Shims, offering a complete technical deep-dive suitable for mechanics, DIYers, and restoration experts.

What Are Valve Shims?

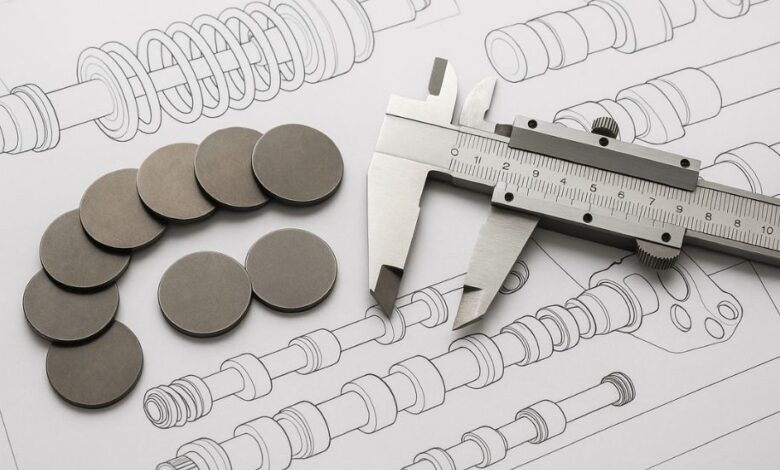

Valve shims are thin, precision-machined discs that sit between the camshaft lobes and valve lifters or buckets in engines with solid lifter systems. Their primary role is to adjust valve clearance (or lash) to ensure that the valves open and close at the correct time and duration. This clearance is crucial in engines that do not use hydraulic lifters, as it compensates for thermal expansion and wear over time.

In the Audi 5-cylinder 10V turbo engines, valve shims help maintain tight tolerances and efficient combustion. The correct shim thickness ensures:

  • Maximum power output

  • Optimal fuel efficiency

  • Longevity of the valvetrain components

Audi’s 5-Cylinder 10V Turbo Engine: An Overview

Before delving into the specifics of the valve shims, it’s important to understand the engine architecture where these components play a crucial role.

See also  The Future of Banking: Fintech Zoom Is Changing the Way We Manage Money

Key Characteristics:

  • Displacement: Typically 2.1L to 2.2L

  • Turbocharged: Equipped with K26 or K24 turbochargers

  • Valvetrain: 10-valve SOHC configuration (2 valves per cylinder)

  • Popular Variants: Audi WR, MC1, MC2, and MB engines

These engines feature a solid lifter valvetrain, meaning they do not automatically adjust for lash. Hence, valve shims are used for manually adjusting the clearance between cam lobes and valve tappets.

Importance of Correct Valve Clearance

Valve clearance affects how much the valves open and how long they stay open—two vital factors in air-fuel mixture intake and exhaust evacuation. Too tight? The valve might never fully close, leading to loss of compression or burnt valves. Too loose? The valvetrain becomes noisy, and valve timing is compromised.

For Audi’s 10V turbo engines, valve lash specs typically range from 0.35 mm intake and 0.40 mm exhaust when cold. Maintaining this clearance is essential for:

  • Avoiding premature wear

  • Preventing overheating and valve damage

  • Achieving consistent cylinder pressures

How to Measure and Adjust Valve Shims

Valve shim adjustment is a delicate yet essential process. Here’s a general step-by-step guide:

1. Remove Valve Cover

Unbolt the valve cover to expose the camshaft and valve lifters.

2. Rotate the Engine

Using a ratchet on the crankshaft bolt, turn the engine to bring each cam lobe to its base circle (the lowest point on the camshaft lobe).

3. Measure Clearance

Insert a feeler gauge between the cam lobe and the shim. Note the reading.

4. Remove and Measure Shim

Using a special valve shim tool, depress the valve and remove the shim. Use a micrometer to measure its thickness.

See also  Orformi Cursors A Revolution in Digital Customization

5. Calculate New Shim

To adjust clearance, use this formula:

New Shim Thickness = Old Shim Thickness + (Measured Clearance – Specified Clearance)

6. Install New Shim

Install the new shim and re-measure to ensure accuracy.

Sourcing Audi 5 Cylinder 10V Turbo Valve Shims

Finding shims for these older engines can be a challenge. Here are some trusted sources and manufacturers:

✅ Techtonics Tuning

A well-respected name in vintage Audi performance parts, Techtonics Tuning offers solid lifter valve kits, oversized valves, and shim assortments compatible with the 10V engine family.

✅ Ferrea Racing Components

Though more common in high-performance applications, Ferrea offers high-quality valve shim kits and precision components suitable for Audi builds.

✅ 034Motorsport

Known for high-performance parts, 034Motorsport supplies camshafts, lifters, and related hardware, sometimes bundling them with compatible shims.

✅ OEM Dealers and Junkyards

Some original Audi dealers or vintage car dismantlers might stock older shims or used parts in acceptable condition.

Common Issues with Valve Shims in 10V Turbo Engines

🔧 Worn or Incorrect Shims

Using incorrect shim thickness can cause poor combustion and misfires.

🔧 Loose Shims

Shims not seated properly can dislodge, especially during high-RPM operations, leading to catastrophic failure.

🔧 Overheating Valves

Tight clearances prevent valves from seating, leading to burnt valves and lost compression.

Tips for Long-Term Maintenance

  1. Inspect Valve Clearance Every 10,000–15,000 Miles if you’re running a modified or high-RPM engine.

  2. Use Anti-Seize Compound when installing shims to prevent corrosion.

  3. Log All Clearances and Shim Thicknesses for reference during future maintenance.

  4. Avoid Mixing Used Shims unless you’ve micrometer-verified them.

  5. Use Quality Tools—a shim removal tool, feeler gauge, and micrometer are essential.

See also  Best Company for SEO Service in India for Business Expansion

Performance Upgrades and Custom Builds

Performance enthusiasts often modify the Audi 10V turbo head with aftermarket camshafts that require custom shimming. When doing so:

  • Upgrade to sport or race cams (e.g., from KM CAMS)

  • Match with performance valve springs

  • Adjust shimming to new cam profiles

  • Use harder alloy shims to handle higher lift/duration profiles

For example, some builders run custom grind camshafts that demand ultra-precise clearance due to their aggressive profiles. Improper shimming in this scenario will kill performance or cause mechanical failure.

The Role of Valve Shims in Tuning and Sound

Another often overlooked aspect is engine sound. The 5-cylinder turbo’s signature growl can be affected by incorrect lash. If the lash is too tight, the engine may lose its signature warble. If too loose, it may sound like a tractor.

Many tuners tune the lash deliberately in racing builds to slightly increase valve float at higher RPMs for better throttle response—though this is strictly a high-performance trick with risks.

Real-World Experience: Lessons from the Community

Forums like Audizine, Motorgeek, and QuattroWorld are filled with experienced Audi tuners who document their valve shim adventures. A recurring theme is the need for patience, precision, and consistency when working with solid lifter setups.

Many report rechecking clearances after initial break-in of new cams and lifters. It’s common to go through multiple shim changes during a full rebuild or cam swap.

Conclusion

Valve shims in the Audi 5 Cylinder 10V Turbo engine are far more than just spacers—they’re precision-tuning components that determine the engine’s breathing, durability, and personality. As these legendary engines age, preserving their performance means understanding and properly adjusting these tiny, yet critical, discs.

Whether you’re maintaining a classic Ur-Quattro or building a monster turbocharged 200, mastering valve shim adjustments is part of the Audi 10V ownership journey.

For car enthusiasts and gearheads who live and breathe vintage Audi performance, valve shimming is not just a task—it’s a craft.
